9.3. Solving Linear Systems with Backslash ( \ )#

using LinearAlgebra, Plots

9.3.1. Square Linear Systems#

A fundamental problem in linear algebra is solving systems of equations of the form \(Ax = b\). In Julia, the most idiomatic, efficient, and numerically stable way to do this is with the backslash operator, \.

This is one of the most celebrated features of the language. It’s not just convenient syntax; it’s a powerful tool that analyzes the matrix A and chooses the best algorithm to solve the system.

A = [1 2; 3 4]
b = [5, 1]

# Solves the system Ax = b for the unknown vector x.
x = A \ b

2-element Vector{Float64}:
 -9.0
  7.0

While you can think of A \ b as being mathematically equivalent to \(A^{-1}b\), it’s crucial to understand that Julia does not compute the matrix inverse. Instead, it uses much more efficient and numerically stable methods, like LU factorization.

To verify the solution, we can check if \(Ax\) is approximately equal to \(b\). Use ≈ (typed as \approx + Tab) for floating-point comparisons.

# Check if the residual, A*x - b, is close to zero.
A*x ≈ b

true

The backslash operator is also optimized for solving systems with multiple right-hand sides. If B is a matrix, A \ B will solve \(AX = B\) for the matrix \(X\).

# Each column of B is a different right-hand side vector.
B = [5 7; 1 -3]

# The columns of X will be the solutions for the corresponding columns of B.
X = A \ B

2×2 Matrix{Float64}:
 -9.0  -17.0
  7.0   12.0

# Confirm that the solution is correct.
A*X ≈ B

true

The performance of \ depends heavily on the structure of A. When you provide a specialized matrix type, Julia’s multiple dispatch system automatically selects a faster, specialized algorithm. The difference is not minor, it can be astounding.

n = 2000

# Create a large SymTridiagonal matrix.
T = SymTridiagonal(2*ones(n), -ones(n-1))
b_rand = randn(n)
println("Solving with SymTridiagonal type:")
@time x_fast = T \ b_rand;

# Convert the same matrix to a generic, dense Matrix type.
T_full = Matrix(T)
println("\nSolving with dense Matrix type:")
@time x_slow = T_full \ b_rand;

Solving with SymTridiagonal type:
  0.045216 seconds (232.03 k allocations: 12.061 MiB, 99.91% compilation time)

Solving with dense Matrix type:
  0.093419 seconds (15 allocations: 30.550 MiB, 3.66% gc time)

9.3.2. Overdetermined Systems and Linear Regression#

What if the matrix A is not square? If A is a “tall” matrix (more rows than columns), the system \(Ax=b\) is overdetermined, meaning there is generally no exact solution.

In this case, A \ b computes the least-squares solution - the vector \(x\) that minimizes the Euclidean norm of the residual, \(\|Ax - b\|_2\). This is the foundation of linear regression.

Suppose we want to fit a set of \(n\) points \((x_i, y_i)\) to a line \(y = a + bx\). This can be expressed as an overdetermined system:

\[\begin{split} \begin{pmatrix} 1 & x_1 \\ 1 & x_2 \\ \vdots & \vdots \\ 1 & x_n \end{pmatrix} \begin{pmatrix} a \\ b \end{pmatrix} \approx \begin{pmatrix} y_1 \\ y_2 \\ \vdots \\ y_n \end{pmatrix} \end{split}\]

The backslash operator is the perfect tool to find the best-fit coefficients \(a\) and \(b\).

# 1. Generate some sample data with noise.
x_data = 0:0.1:10
n = length(x_data)
# y = 3x - 2 + random noise
y_data = 3 .* x_data .- 2 .+ randn(n)

# 2. Construct the matrix A (often called the design matrix).
# The first column of 1s is for the intercept 'a'.
# The second column of x values is for the slope 'b'.
A = [ones(n) x_data]

# 3. Solve for the coefficients [a, b] using the least-squares method.
coeffs = A \ y_data

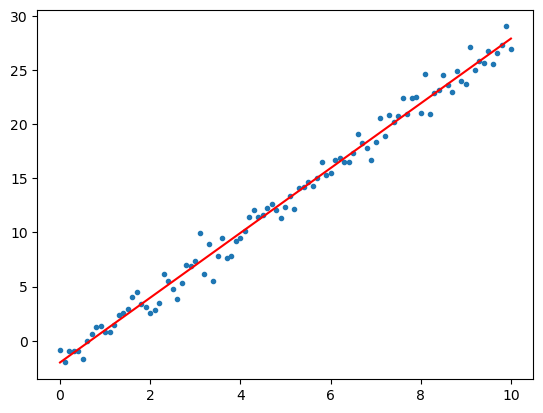

# 4. Plot the results.
scatter(x_data, y_data, label="Data Points", markersize=3, markerstrokewidth=0)
plot!(x_data, coeffs[1] .+ coeffs[2] .* x_data,
      label="Least-Squares Fit",
      color=:red,
      linewidth=2)
title!("Linear Regression with Least Squares")
xlabel!("x")
ylabel!("y")
